We have 2 world first-class ultraprecise high speed slitting lines which have the Stripper&Spacer tool system whose guide system maintain the narrowest knife clearance(35mm~1250mm,burr≤0.01m,Speed 300 ) AND 12 domestic first-class laser positioning slitting lines (80mm~1250mm, burr≤0.02mm, Speed 80 & 120).
We are honored to serve you in the coming future.
巨龙铁芯拥有两条超高精度的装有进口隔套式刀具的高速液压丝刀纵剪线,开料宽度35mm到1250mm,平均毛刺≤0.01mm,速度300和12条西安启源激光定位的高精度纵剪线,开料宽度80mm到1250mm,平均毛刺≤0.02mm,速度80和120.
我们竭诚期待为您服务.
We serve China Electric Equipment Group,Siemens Energy,ABB,Schneider,Toshiba,Nantong HYOSUNG,TBEA and so on with the careful pre-stacked lamination products including:3 phrase 3 legs and 3 phrase 5 legs.(with Georg TBA800 C stacker with Autostack module,Georg TBA800 and TBA 1000 with Auto pre-stack module).
We are honored to serve you in the coming future.
巨龙铁芯为中国电气装备集团,西门子能源,ABB,施耐德,东芝,南通晓星,特变电工等客户提供精细预叠的三相三柱或三相五柱铁心等散片产品.我们的德国乔格 TBA800 C Stacker,TBA800,TBA1000 安装有自动叠片和自动预叠的功能模块.
我们竭诚期待为您服务.
We are one of the Key Major players in China's transformer iron core industry. We have built the low noise iron cores which use Baosteel's B30P105-LM with the complete sequences cutting lines ensuring the yoke,side pillar and central pillar's laminations come from the same coils,achieving the breakthrough of 3dbs decline.
We are honored to serve you in the coming future.
巨龙铁芯是中国变压器铁心生产加工领域的领军企业之一。我们生产的采用全序列剪切法生产的基于低噪音材料如B30P105-LM的超静音铁心(全序列剪切: 轭片,边片,中柱片都来源于同一卷材料),实现了将噪音再降3个分贝的突破。
我们竭诚期待为您服务.
Since 2014, We cooperate with Bao Steel and Wujiang Transformer to work together on the innovative energy conservation distribution transformer. Then we built Bao Steel and Julong Joint Lab focusing on the ultralthin silicon steel process including: 0.2mm,0.18mm,0.16mm and so on. We also have 12 cutting lines with
the ability of double yoke function which ensure the widened yoke technique come true.
We are honored to serve you in the coming future.
从2014年开始,巨龙铁芯与宝钢股份和吴江变压器厂一起合作开展了《高能效配变铁心合作协议》的全面合作.并于次年与宝钢硅钢研究所建立基于超薄次世代硅钢的市场化剪切工艺研究的宝钢-巨龙联合实验室.我们拥有能剪切支持轭片加宽的12条高速电动横剪线,能大规模生产基于0.20mm,0.18mm,0.16mm的超薄硅钢的新能效节能变压器铁心.
我们竭诚期待为您服务.
Our Power Transformer Iron Core Workshop has TBA 1000: widest 1040mm Longest 5000mm,PrecisionCut TBA 800 C Stacker: Widest 860mm Longest 5000mm,TBA 800: Widest 850mm Longest 5000mm from German GEORG and SDRI's HJX(D23)-900,
HJX(D23)-600,HJX(D23)-600 ZD/5(3 Georgs and 5 SDRIs). We produce 3 phrase 5 legs Ultra High Voltage transformer iron cores up to 500KV.
We are honored to serve you in the coming future.
巨龙铁芯的主变铁心产品由拥有包括德国乔格TBA1000生产线,最宽支持1040mm,PrecisionCut TBA 800 C Stacker 最宽支持860mm,且可支持自动叠片功能,西安启源的两剪八冲900横剪线,高速电动600线在内的大型电力变压器铁心精密生产设备生产制造.支持生产三相三柱或三相五柱特种、特高压变压器铁心,最高电压等级达到500KV.
我们竭诚期待为您服务.

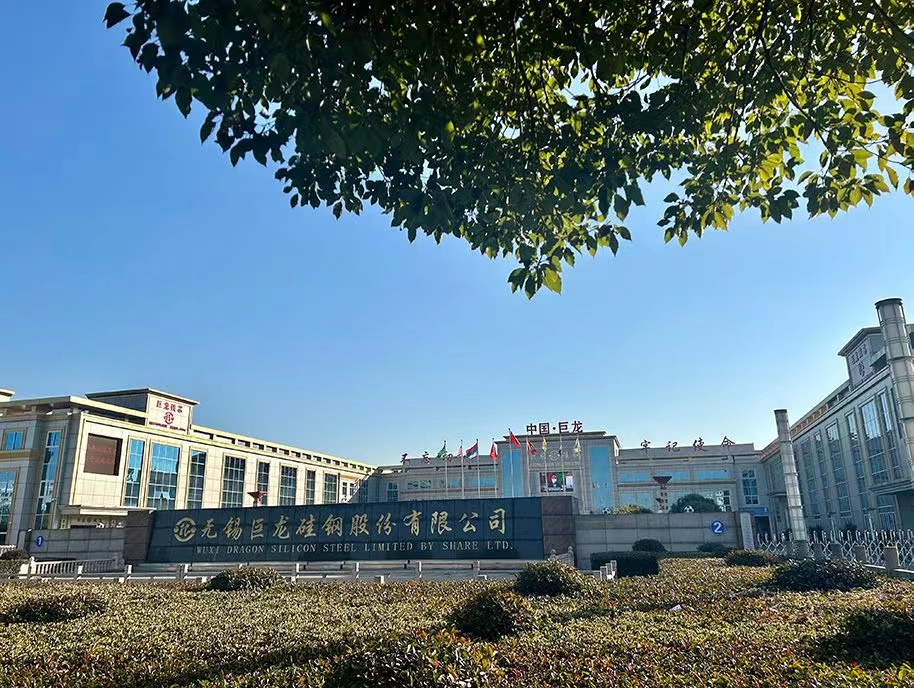

巨龙硅钢您的硅钢物料一站式采购基地!无锡巨龙硅钢股份有限公司(股票代码834764)作为具有制造500KV级特高压电力变压器铁心生产能力的中国变压器铁心设计与制造专家,月铁心产量8000吨(电力变,干式变,油浸变)的无锡市著名企业.
巨龙铁芯是宝武钢专属客户,宝钢中央硅钢研究所紧密合作伙伴,参与《高能效配变铁心》项目的研究工作,为制定变压器配变铁心的行业标准铺平道路;并被宝钢中央硅钢研究所授予宝钢巨龙联合实验室,公司参与宝钢B20R70,B18R065,B30P105-LM(低噪音)牌号新产品试制合作单位(试制型号SB13-800/10 SB13-1250/10 SB13-315/10 SB14-315/10 SCB10-630/10).公司实力雄厚,是无锡锡山区产值过十亿企业之一,江苏省民营科技企业,江苏省专精特新小巨人企业,国家级高新技术企业.
巨龙拥有特高压铁心生产车间;干式变压器铁心车间;油浸式变压器铁心车间;电抗器铁心车间;拥有国际先进的德国乔格TBA800 PrecisionCut E-Stacker柔性智能剪叠一体生产线,TBA1000,TBA800横剪线,以及国内先进的西安启源900型生产线等高精设备;公司同时是全国拥有较多条西安启源机电设备有限公司设备之一的企业,拥有包括超高精度液压丝刀高速纵剪机(进口隔套刀具系统),激光定位高精度纵剪线,启源横剪机集群(900型两剪八冲;600型全序列剪切;400型轭片加宽;200型高速电动)在内的58条生产线,因此公司是西安启源公司的战略合作伙伴.
2019年7月,巨龙公司携手西安启源智能智造4.0智能自动化铁心生产车间的升级工作正式展开,成功实现油浸式配电变压器铁心和干式变压器铁心的智能剪叠一体.2022年3月,巨龙联合德国乔格的剪叠一体智能尖端生产线开始到货安装,截至2023年3月,该系统已进入调试阶段的末期。2022年12月巨龙新引入的智能立体库车间正在进行安装与调试。
巨龙硅钢于2015年12月于北京新三板市场挂牌成功,股票代码834764现正积极筹备主板上市工作.公司占地100多亩,300名具有多年行业经验的员工团队,其中工程师,专业技术人员三十余名,全部车间的车间主任,组长,技术骨干的平均从业年龄在12.5年.
Read In English&MoreThis workshop is equipped with Ultraprecise High Speed Slitting Line with the ability of loading MAX to 18 tons mother coil,and SDRI laser positioning slitting line and Automatic Package Sytem from Shanghai Charlie. It mainly supports the uptodate precisely slitted silicon steel coils manufacturing.

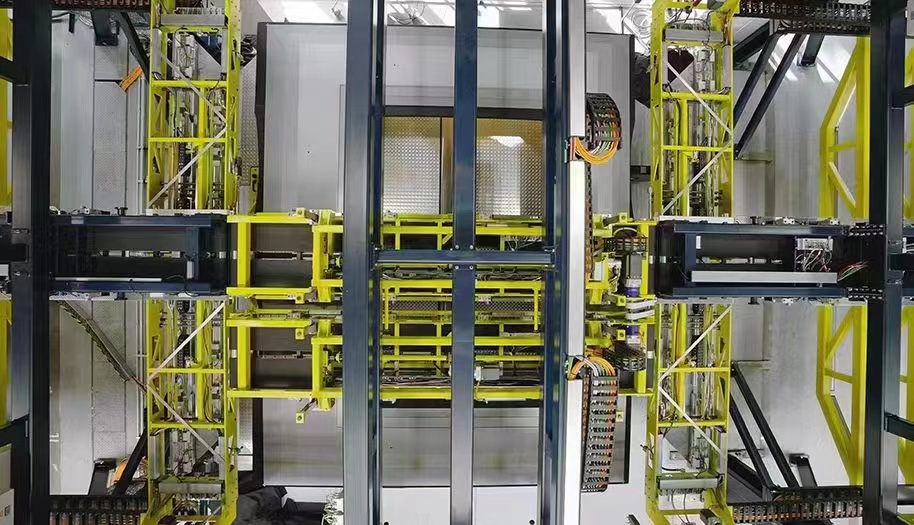

This workshop is equipped with GEORG most uptodate Precisioncut TBA800 E-Stacker with a high speed precisely slitting line and AI Stereoscopic Warehouse which can automaticly serve the Cutting & Stacking System.

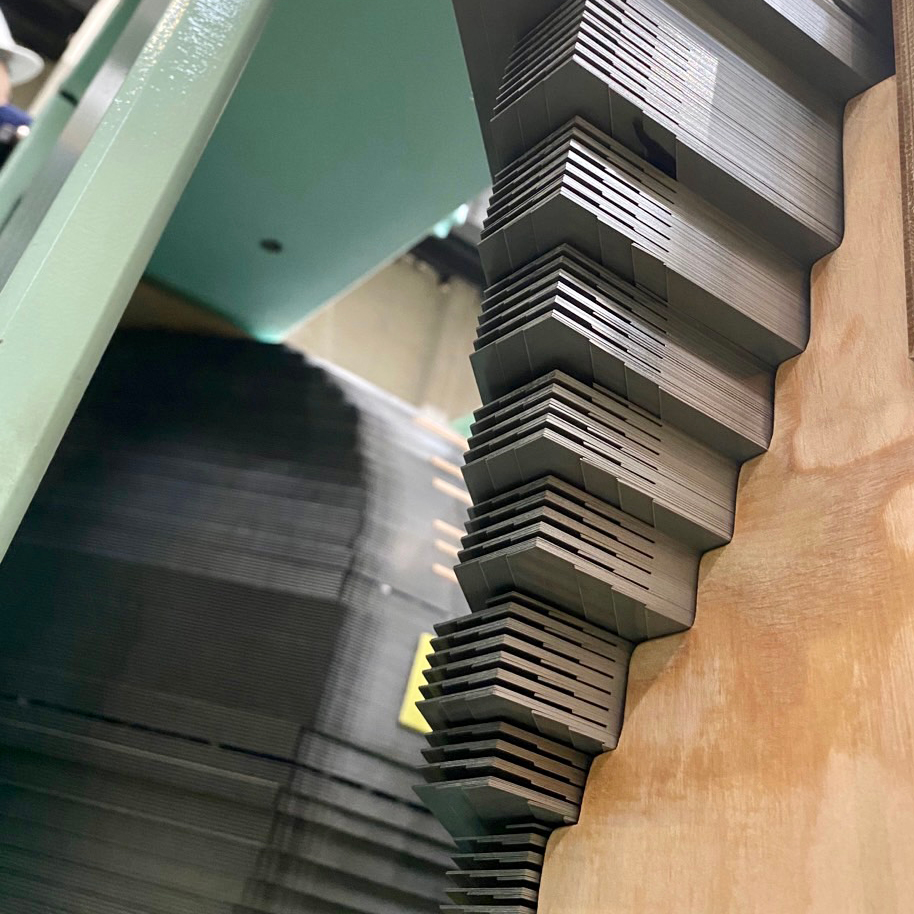

This workshop is equipped with GEORG Precisioncut TBA1000&TBA800 with Automatic Pre-Stack Module. It can serve our customer with our honored Precisely Pre-Stacked Laminations.
This workshop is equipped with SDRI Full Sequence Cut 600 & 900 with 2 Shears and 8 Punches facilities. The SDRI slitting lines and cutting lines make the dry type transformer core's work done succefully.

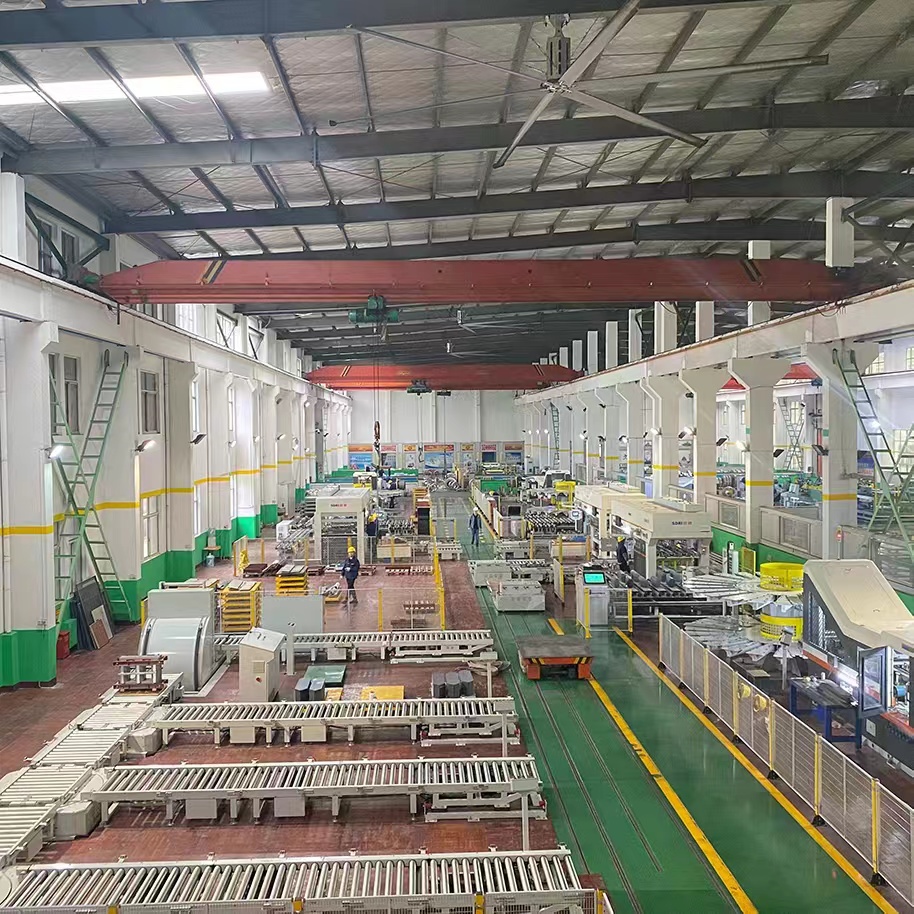

This workshop is equipped with SDRI laser positioning slitting lines, SDRI high speed 200 cutting lines ,automatic stacking machines and SDRI 400 which can surpport the Widened Yoke technique .

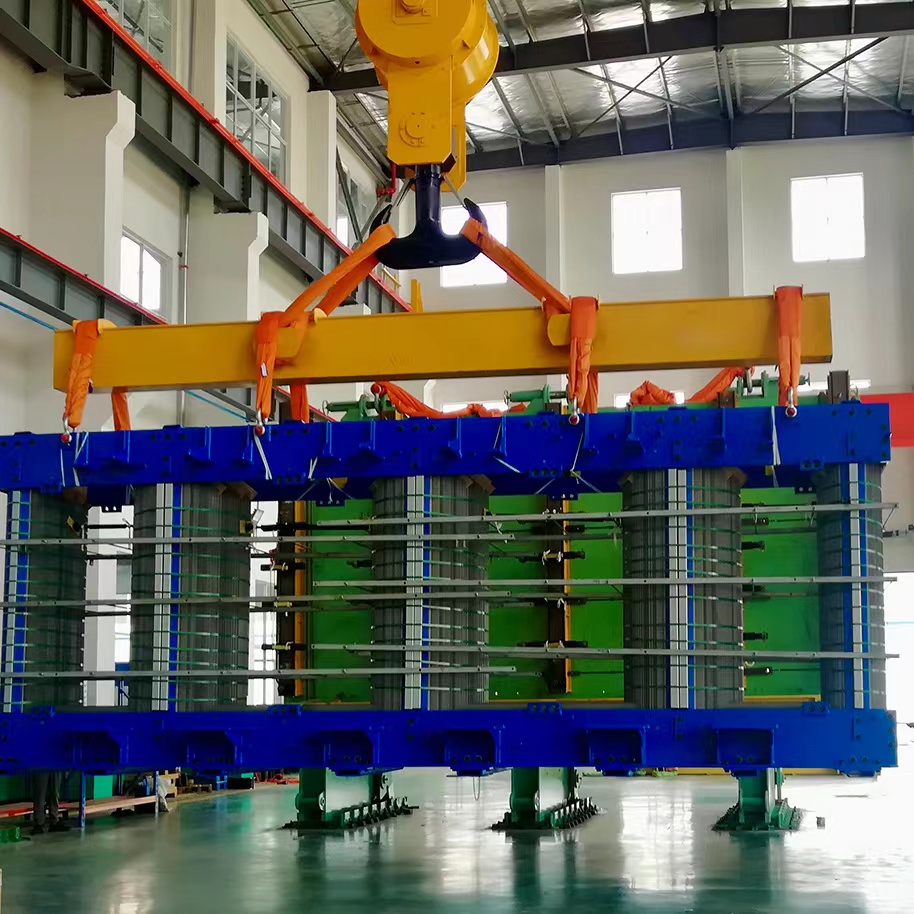

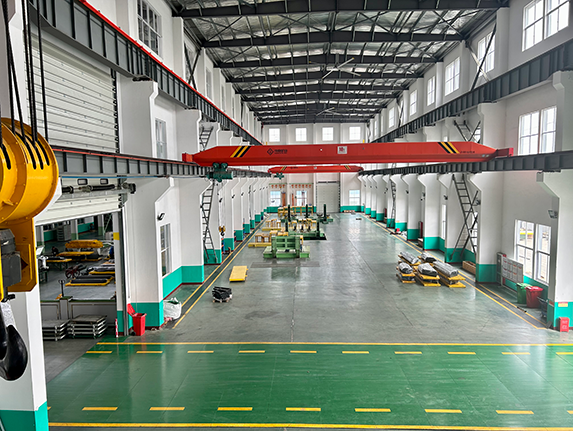

This workshop is one of our factory's stacking workshops.It has the ability of lifting up to 100 tons power transformer iron cores.BTW we also have distribution transformer iron core's stacking workshops.
We have 3 Clamping System Workshops which surpport power transformer clamping system,Laser Bending clamping system manufacturing.One is in the Chuangye Rd #7 which is 600 metres distance from the main factory, and two are rented nearby.
We also have 3 backup Iron core factories which can support the upexpected iron core output. One is in Chuangye Rd #7 very close to the main factory , one is in Luqiao District,Taizhou City Zhejiang Province,and another is in Pizhou City,Xuzhou City, Jiangsu Province.
Since 10/2014, Julong has cooperated with BaoSteel in the study area: High performance distribute transformer’s iron core . In 7/2015 , Julong has established Joint laboratory with Baosteel.This photo was taken at Baosteel Central Silicon Steel Research Institute.
